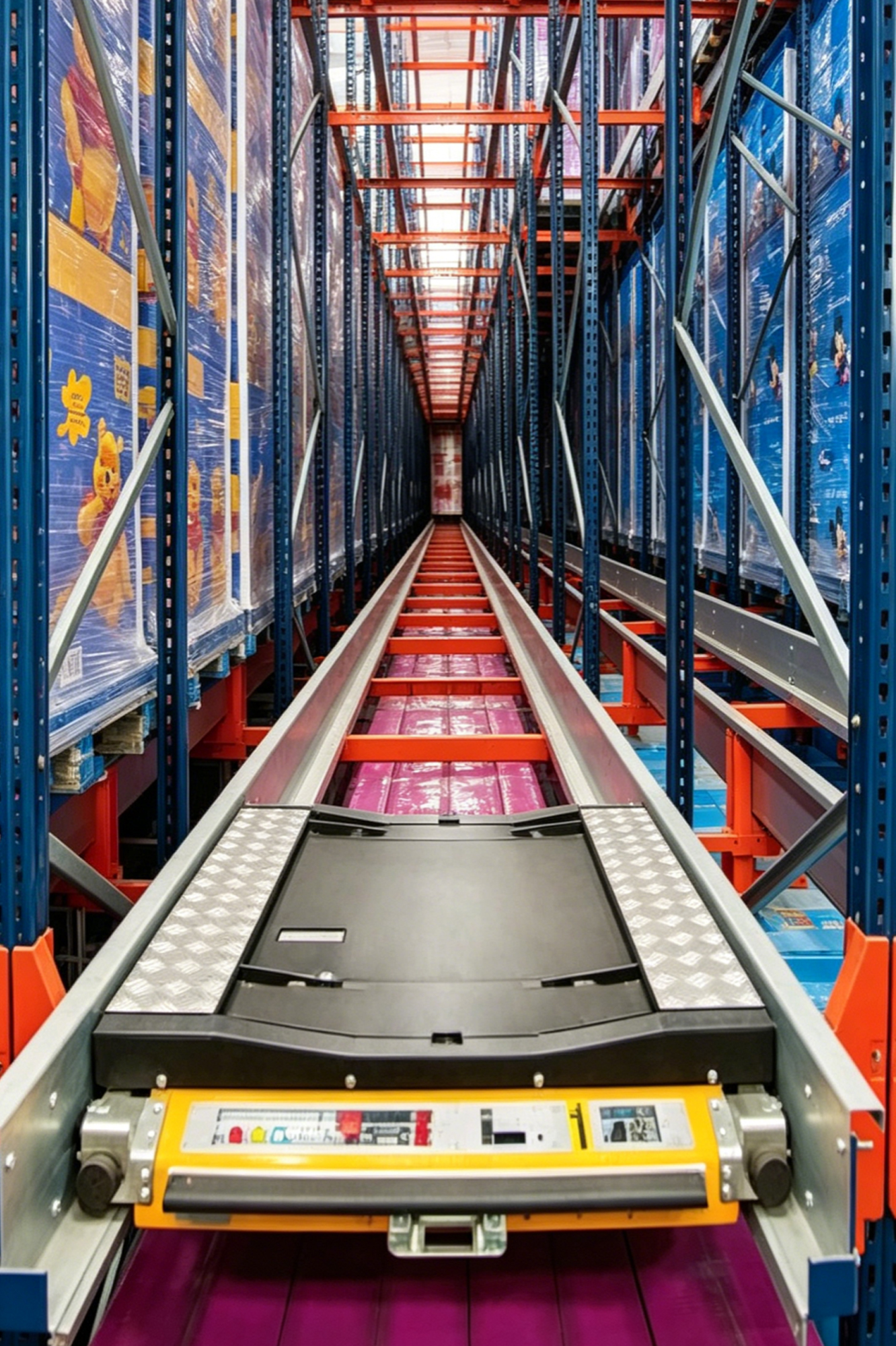

Shuttle rack
View:16031

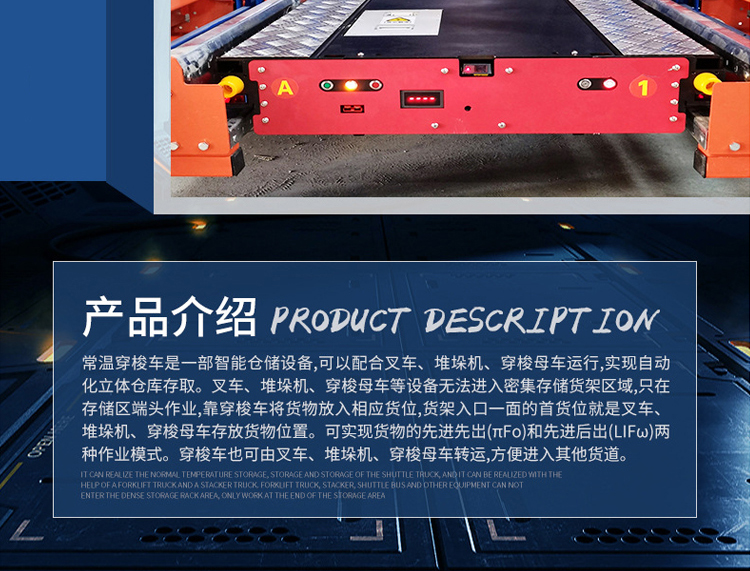

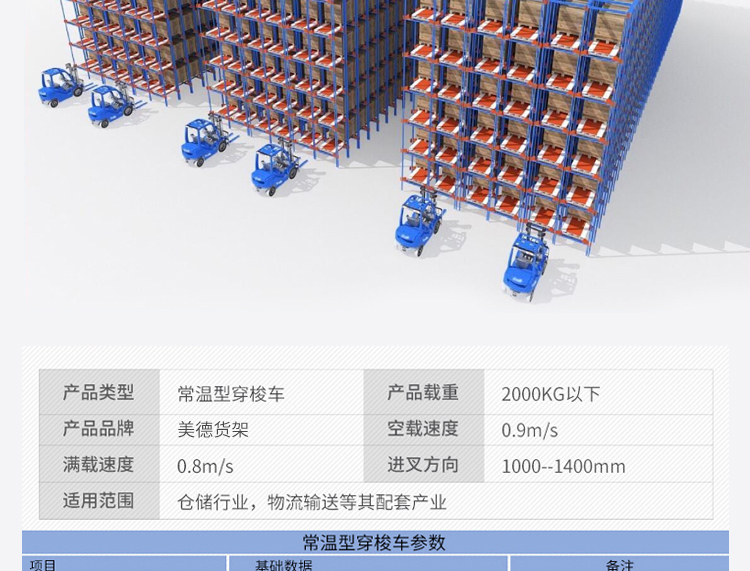

Shuttle car shelving is a high-density, semi intelligent pallet intensive storage system consisting of a heavy-duty shelving body, dedicated tracks, electric remote-controlled shuttle cars (RGVs), and forklifts. Abandoning the traditional large number of forklift channels, leaving only a small number of operation channels and densely arranged shelves, shuttle cars automatically transport pallets within the track, achieving maximum space, automated storage and retrieval, and efficient management. It is a modern intelligent warehousing preferred solution for large-scale, single category, and high storage capacity requirements.

Working principle

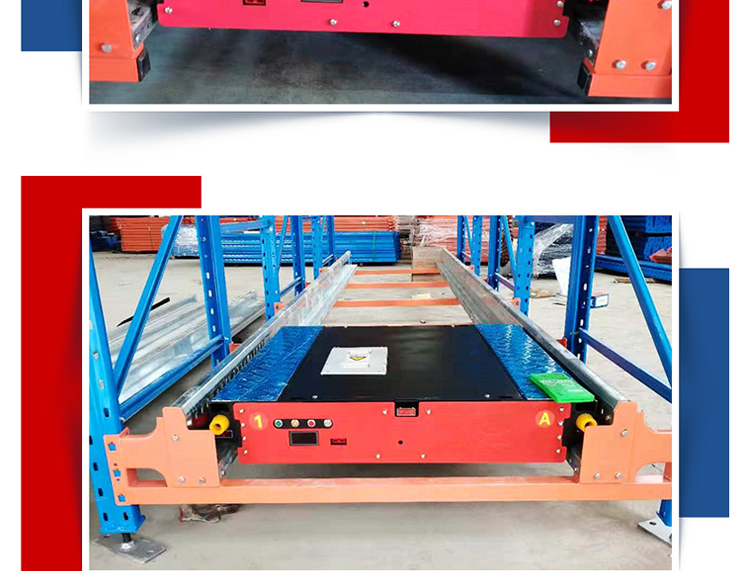

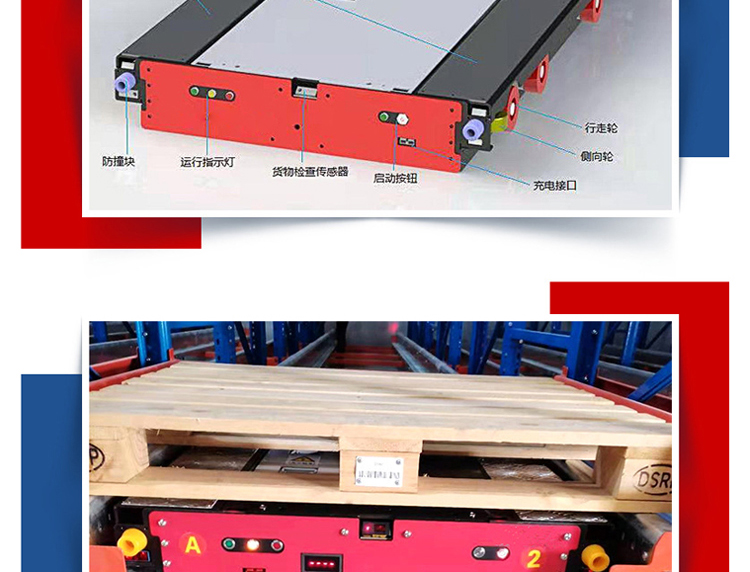

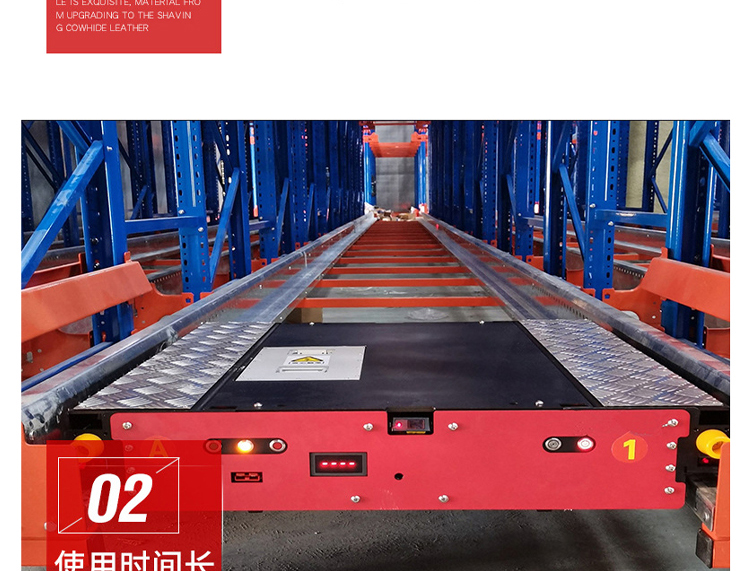

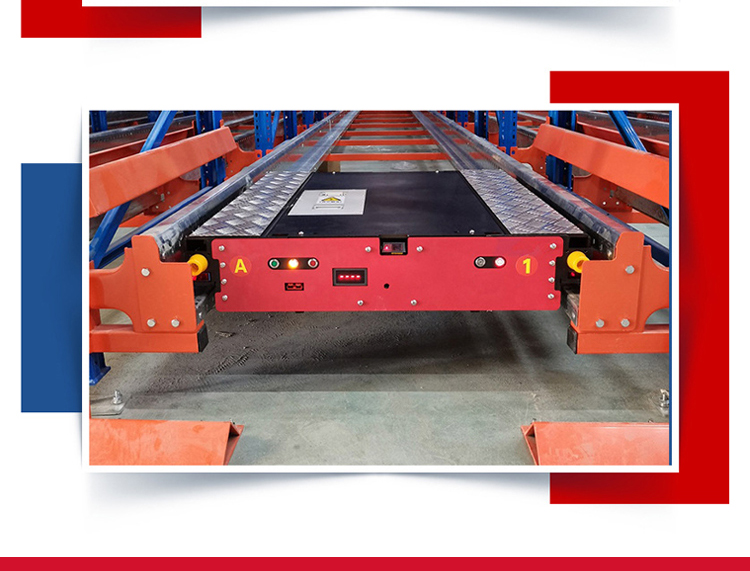

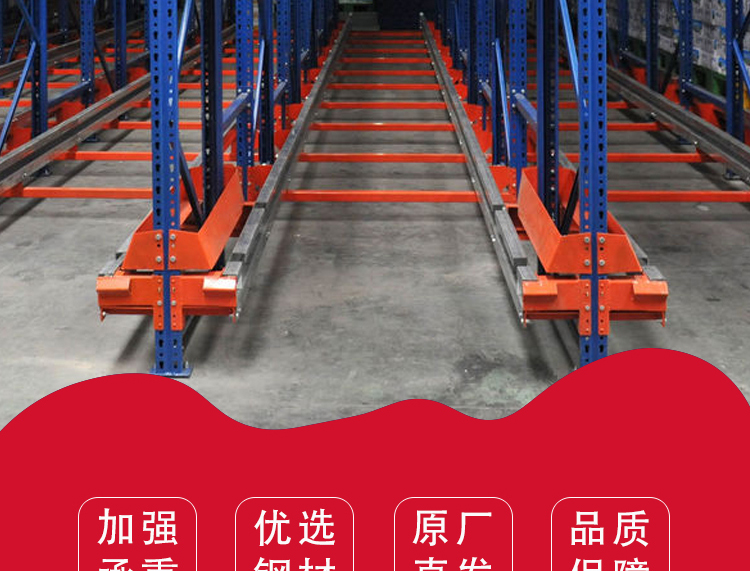

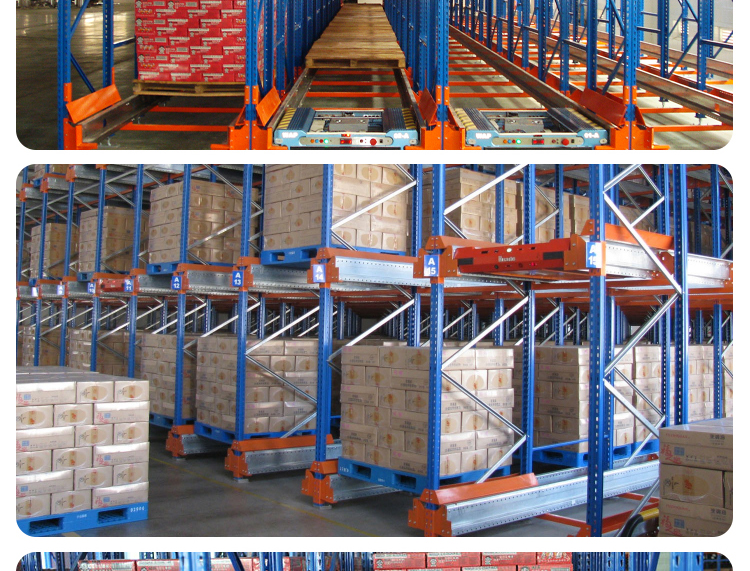

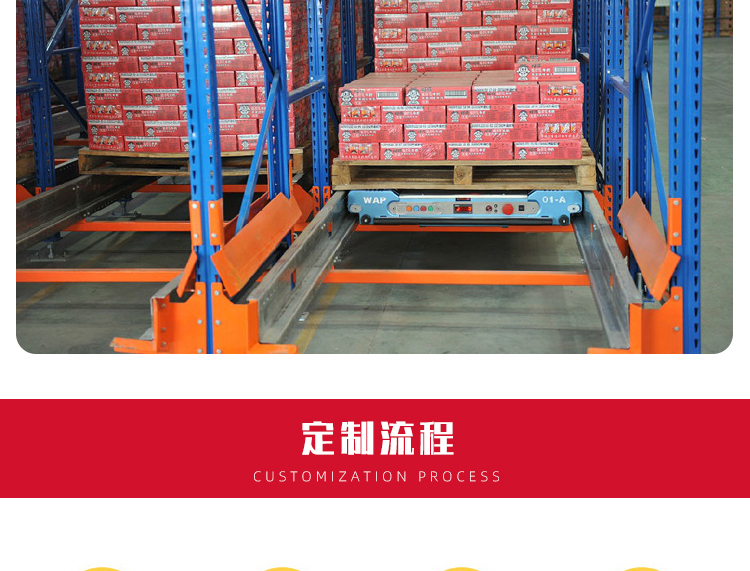

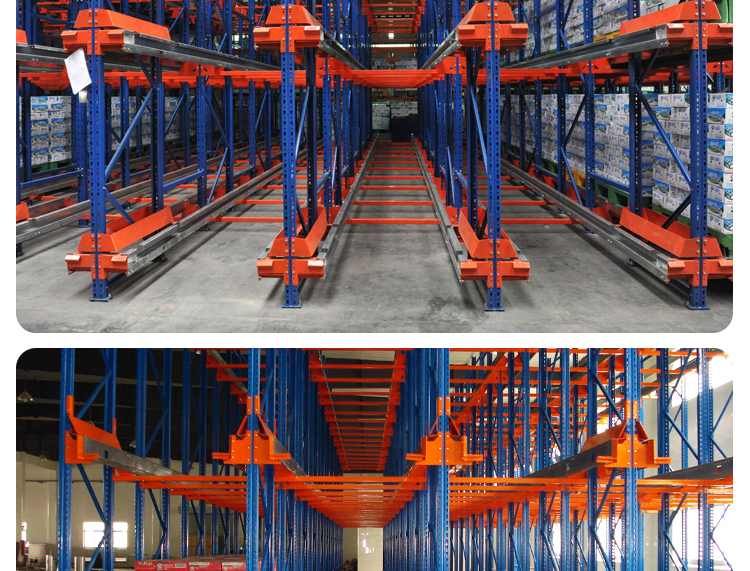

The shelf aisle is equipped with dedicated load-bearing tracks; Forklifts place shuttle vehicles at the entrance of the tunnel and remotely control them; The shuttle car is powered by batteries, lifts trays, and automatically travels along the track to complete tray storage/retrieval; Support free switching between first in first out FIFO and first in last out FILO modes; Forklifts only operate in the main channels at both ends and do not need to enter the interior of the tunnel, ensuring safety and efficiency.
CONTACT
Product Details
Shuttle rack

Application scenarios


Suitable for large-scale, low SKU, strict batch management, cold storage/low temperature, space limited storage environments: food and beverage, cold chain medicine, tobacco and alcohol fast-moving consumer goods, chemical raw materials, grain and oil, tobacco, manufacturing finished product warehouses, cold chain cold storage, large-scale raw material storage, etc; Suitable for palletizing, centralized storage of goods of the same specifications, large inventory volume, and pursuit of high space utilization in warehouses.

Core advantage


1. Extremely secure storage, doubling the space
National standard Q235B high-quality cold-rolled steel, precision track structure; Cancel the internal forklift channel, increase space utilization by 30% -50%, and reach over 80%, significantly expand storage capacity, and save warehouse construction costs.

2. Intelligent and efficient, safe and low loss

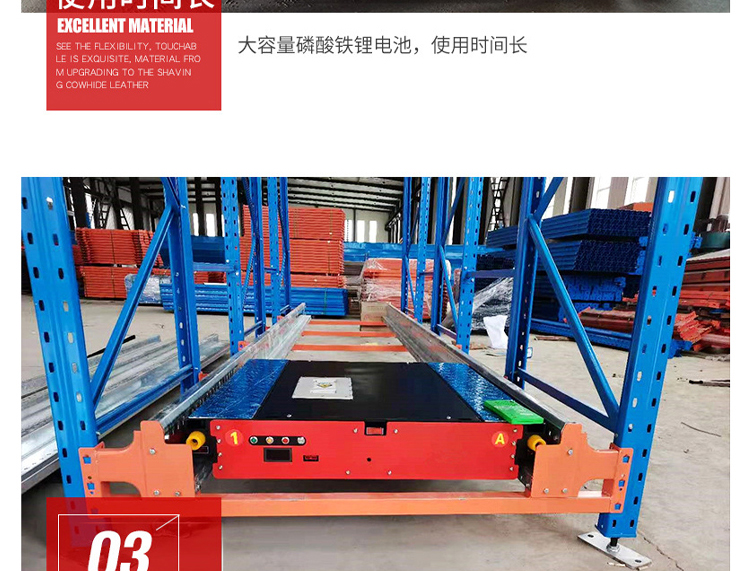

Remote control automatic access, forklifts do not enter the aisle, avoiding forklift collisions with shelves and reducing the risk of wear and tear; The shuttle car's lithium battery has a long range, stable operation, safety protection/alarm, and significantly improves operational efficiency.

3. Flexible and controllable, with selectable modes
Support first in first out/first in last out dual modes, adapted to batch management and inventory turnover needs; The roadway can be arranged in a deep and multi-layered dense layout, compatible with conventional/low-temperature cold storage conditions, and can be upgraded to fully automated WMS systems.

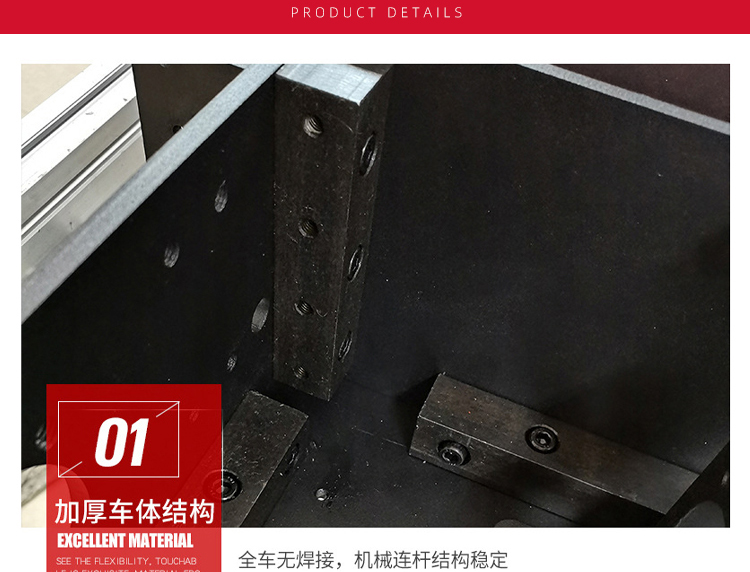

4. Exquisite craftsmanship, sturdy and durable
Integrated molding, high track accuracy, and stable structure; Surface electrostatic spraying for corrosion and rust prevention, wear and impact resistance, long-term heavy-duty stability, easy maintenance, and high cost-effectiveness.
