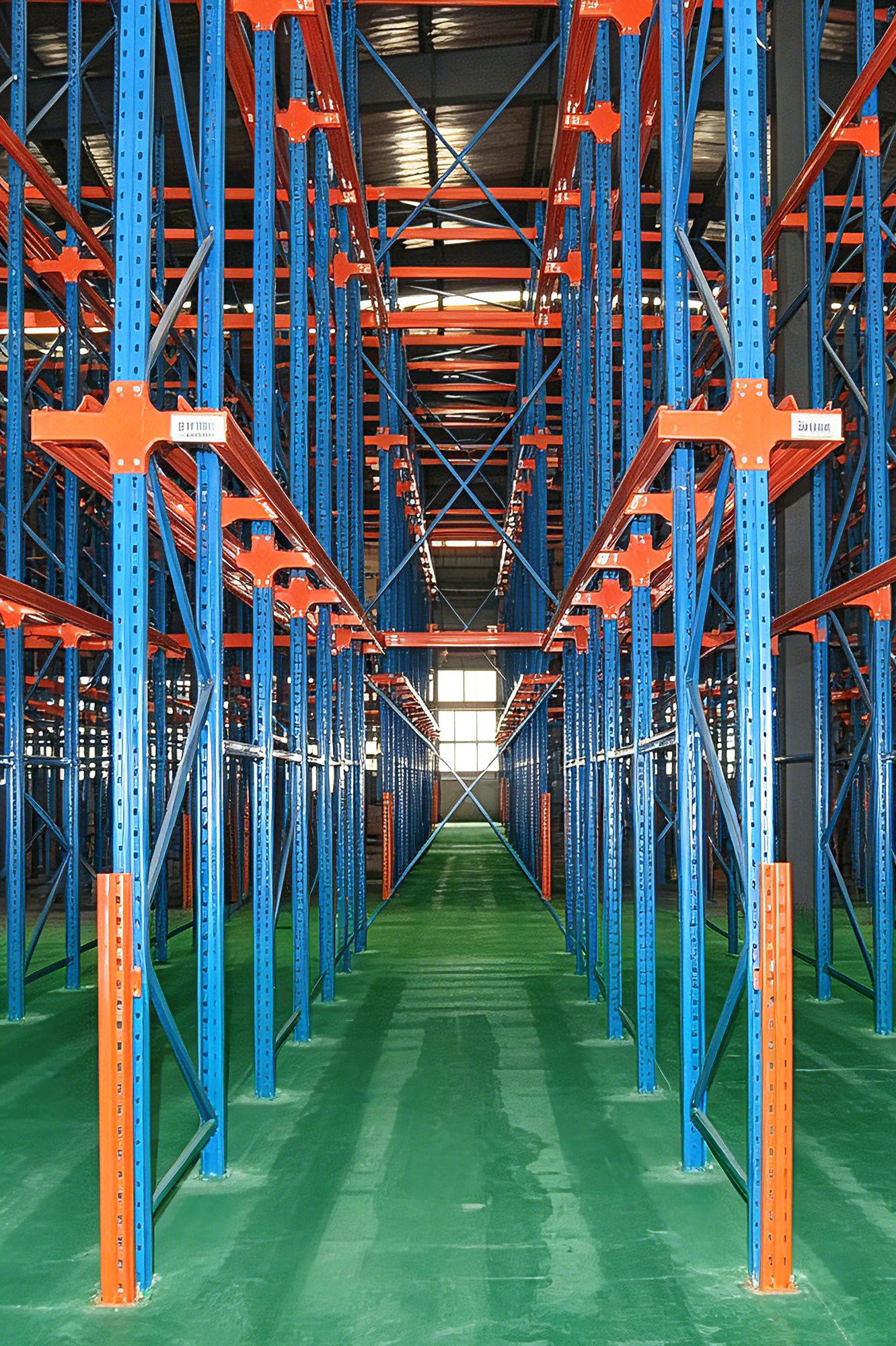

Drive-in racking

Through type shelving, corridor type shelving, entry type shelving

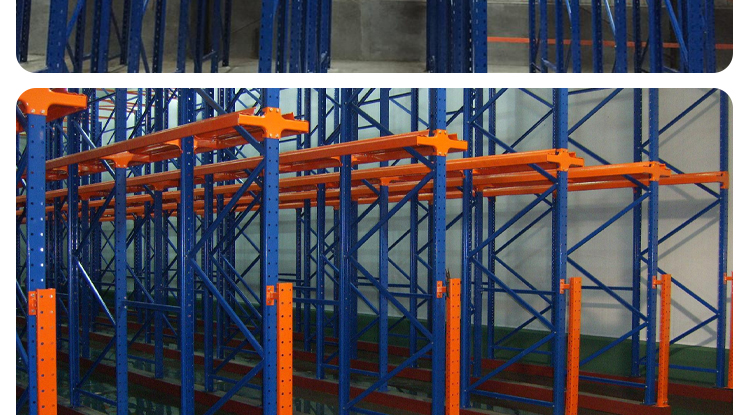

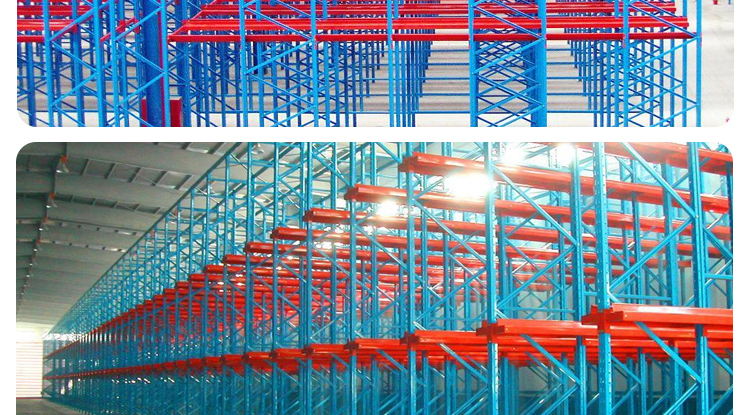

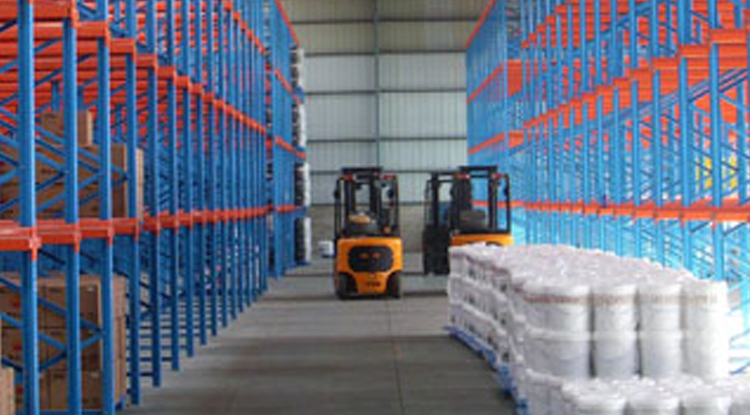

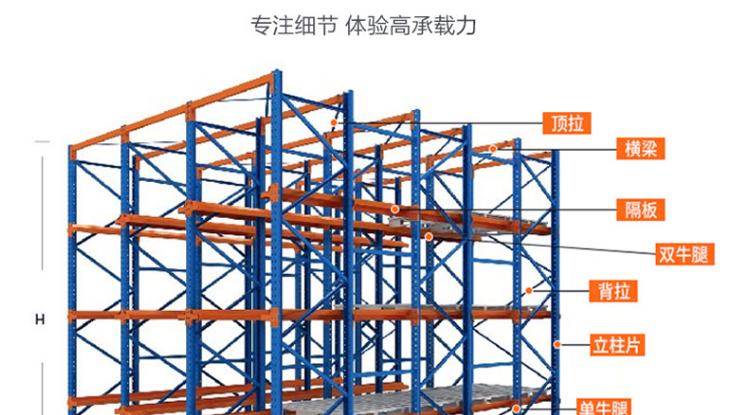

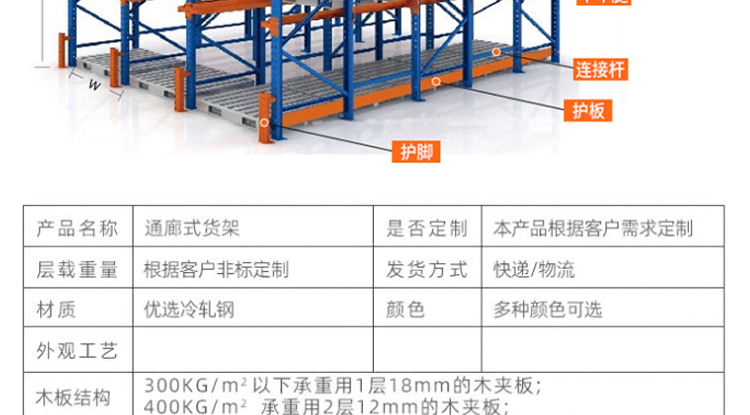

Drive in shelving (also known as through type or corridor type shelving), high-density continuous pallet storage system; Cancel the traditional shelf separation channel, the shelves are connected as a whole without separated cargo spaces, consisting of columns, cow leg guide rails, and top pull/foot guards. Forklifts can directly enter the deep aisle to access pallets, and the channel and storage area are integrated, greatly improving storage capacity density. Following the principle of first in, first out LIFO (single-sided), double-sided through-hole can be used as first in, first out FIFO; Suitable for large-scale, low SKU, and full pallet entry and exit scenarios.
Structural principle

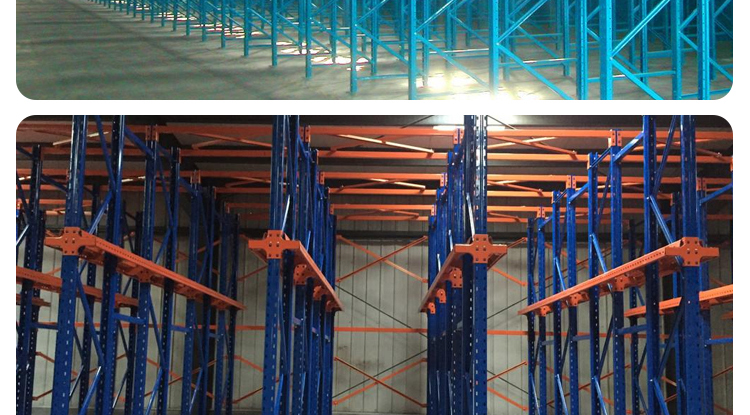

No crossbeam design, the tray is directly mounted on the cow leg guide rail and stacked tightly and continuously along the depth direction; Forklifts enter from one end, store from the inside out, and pick up goods from the outside in; Single side depth ≤ 7 pallets, double-sided penetration ≤ 9 pallets, ensuring safe and efficient operation of forklifts.

CONTACT

Product Details

Application scenarios

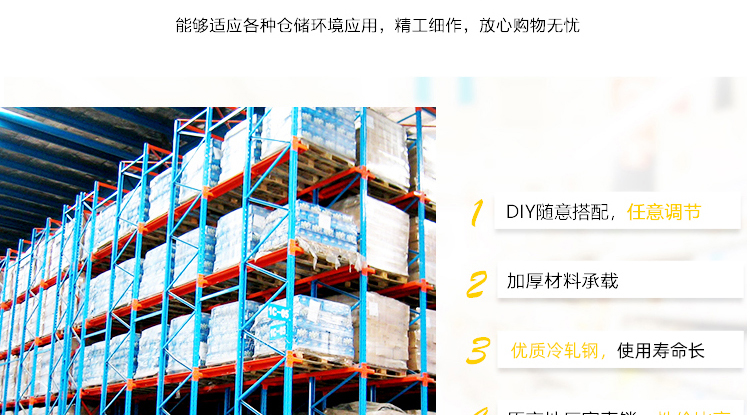

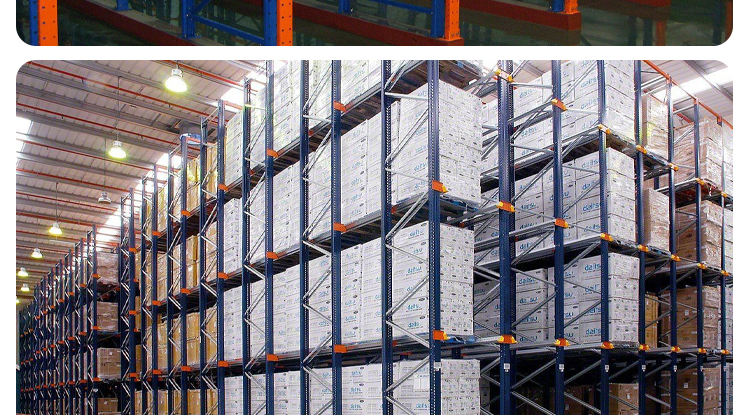

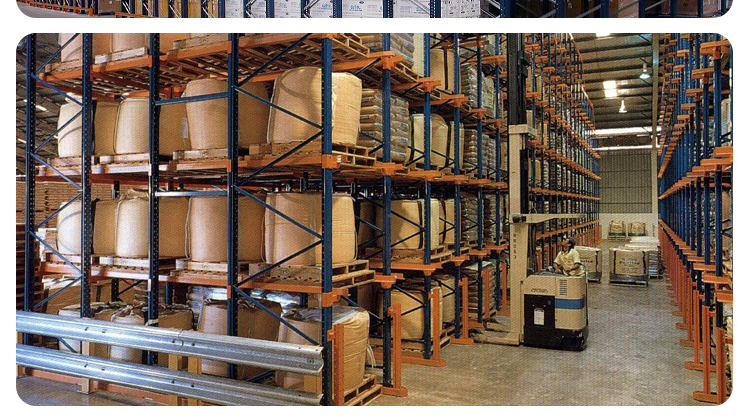

Suitable for large quantities, few varieties, whole pallet entry and exit, batch uniformity: food and beverage, grain and oil, dairy products, tobacco, chemical raw materials, cold chain cold storage, household appliance raw material/finished product warehouse, low-temperature storage, and storage areas with high space costs.

Core advantage

1. Ultra high density storage, doubling the space

National standard Q235B high-quality cold-rolled steel, fully plug-in assembly structure; Cancelling multiple rows of forklift channels can increase space utilization by 30% -50%, significantly expand storage capacity, and lower unit storage costs.

2. Efficient access and adaptation to overloading

The cow leg guide rail has stable load-bearing capacity and can support a single load of up to 1.5 tons; Forklifts drive directly into the aisle, allowing for quick storage and retrieval of the entire pallet, making it suitable for bulk turnover.

3. Durable and sturdy, with safety protection

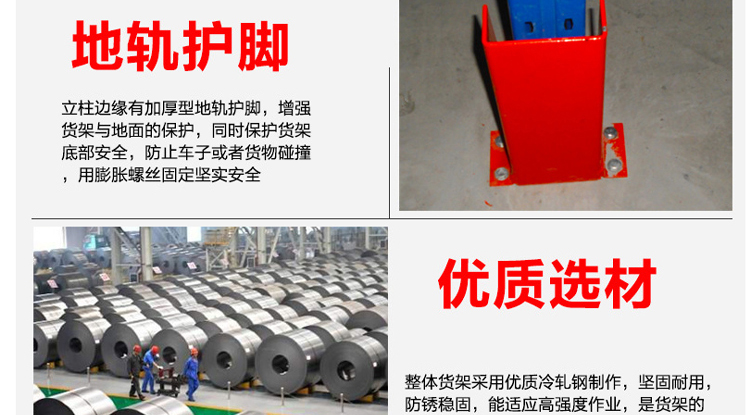

Surface electrostatic spraying, anti-corrosion, rust proof, wear-resistant and anti-collision; Equipped with foot protection, guide rails, top pull reinforcement, collision prevention, stable structure, and long-term heavy-duty safety.

4. Economical and practical, easy to install

Bolt assembly, no need for on-site welding, easy disassembly, relocation, and expansion; Simple structure, low investment cost, and high cost-effectiveness.
